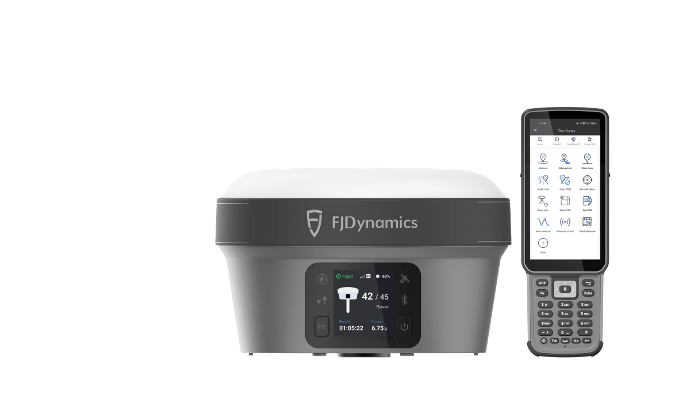

Capture More, Worry Less
Grab the V10i and get measuring. Integrating an OLED screen, IMU, and two cameras, the V10i gives us a next-level productivity boost. The AR Stakeout gives you real-time visual guidance on stakeouts. The Visual Measure achieves the measurement of hard-to-access locations. An OLED screen will bring a new interactive experience for Surveyors.
Features
Twin high-resolution cameras, Visual Measure and AR StakeOut
Max tilt 60°, Calibration-free
H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS
IP68, 2m Drop-proof
Built-in 4G LTE and UHF. NFC, WiFi, Bluetooth
1408 chanels, Full Constellations
Clear Vision, Precise Measurements

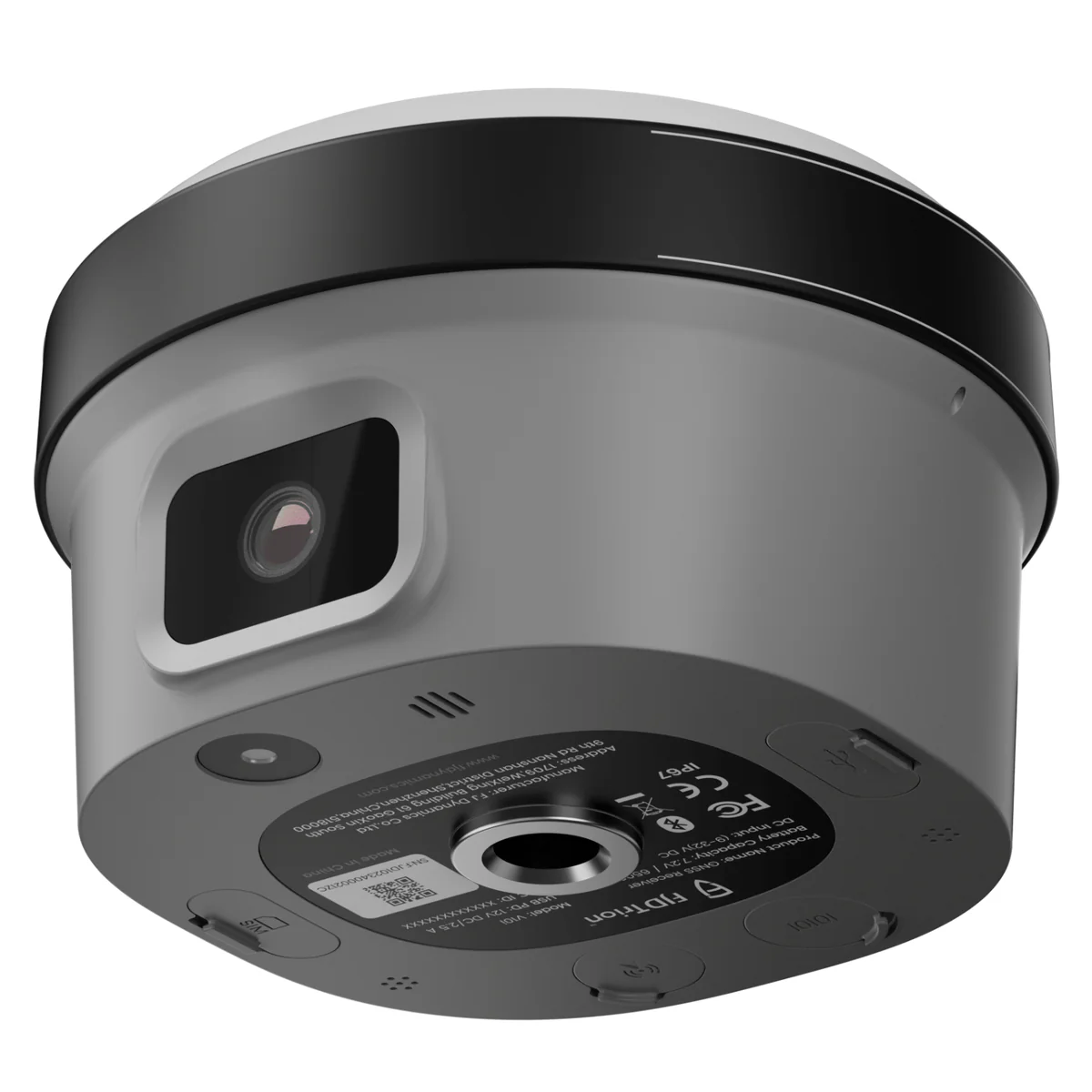

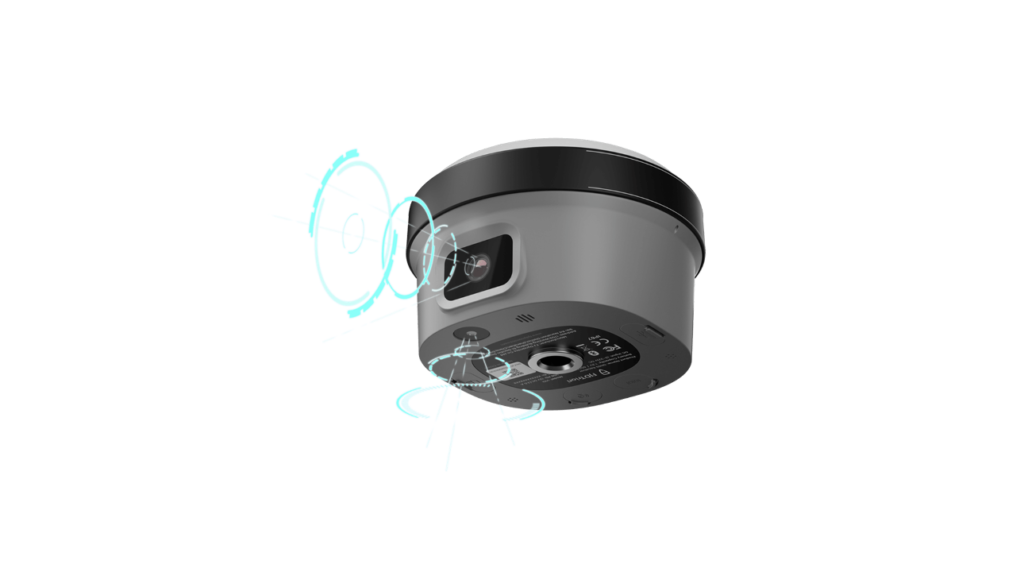

With a 2MP front camera and a 5MP bottom camera, V10i will bring a clear picture texture to the surveyors. A powerful 4-core processor and a multi-engine algorithm ensure the V10i gets a smooth image in the AR Stakeout function. And in the image measurement function, you only need to click on the photo to obtain centimeter-level precision coordinates.
Safer and More Efficient
AR Stakeout
The AR Stakeout feature turns the traditional stakeout on its head. Two HD cameras provide a clear video view in real-time during stakeout. The location of the point is shown directly in the video. Real-time directional guidance will allow us to find the stakeout points quickly.
Visual Measure
The Visual Measure function of the V10i enables it to be utilized for measurements in areas that are difficult to access. After capturing at least 5 high-definition photos, the coordinates can be easily obtained in the photos using a multi-engine algorithm, which is very practical in many dangerous situations.
Tilt Compensation

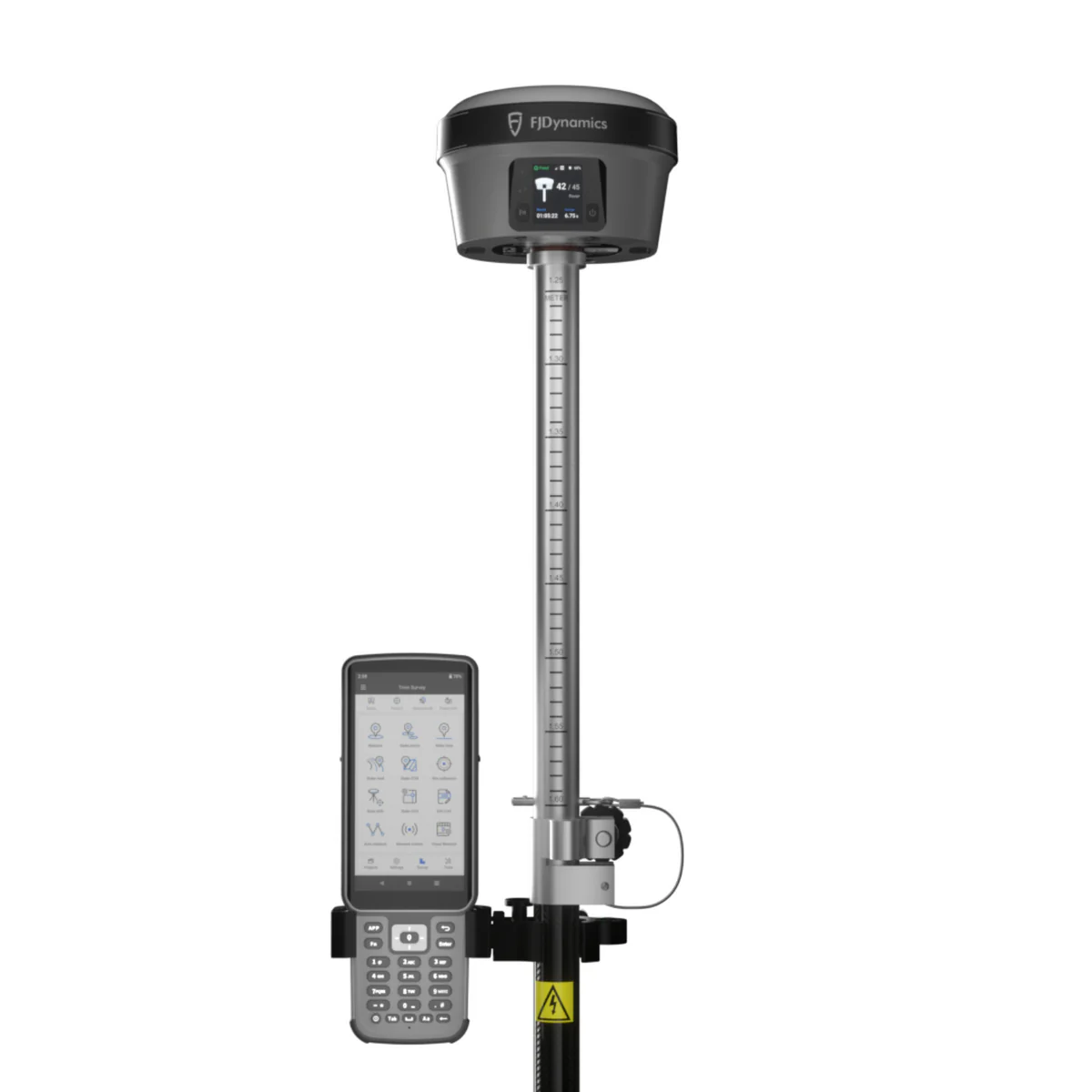

The V10i supports the Tilt Survey of 60 degrees. We don’t need to hold the survey pole upright when measured, which improves the efficiency of the measurement. When we meet some positions where we can’t hold the pole upright, the Tilt Survey function will help you solve it easily.
Intelligent interaction with ultimate experience

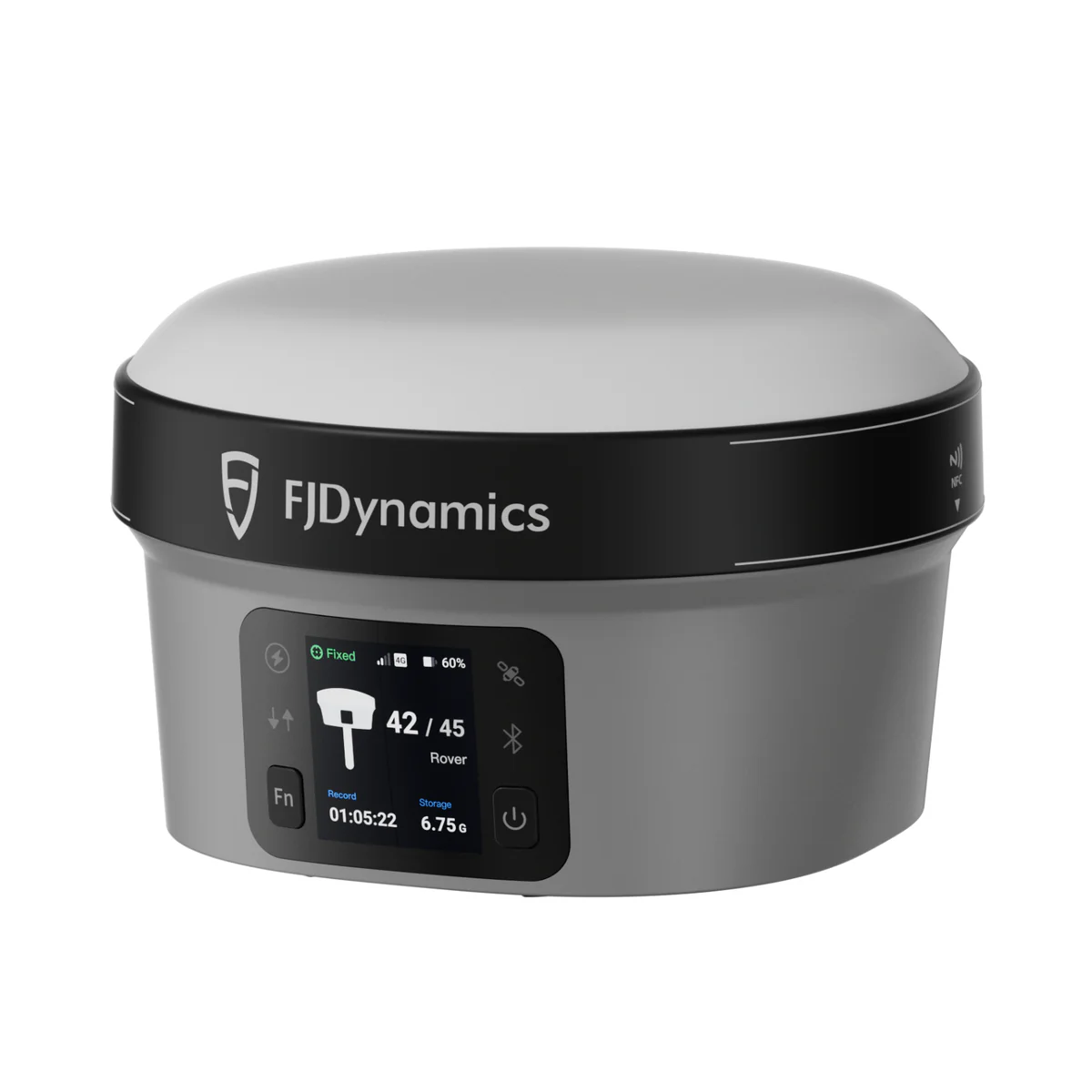

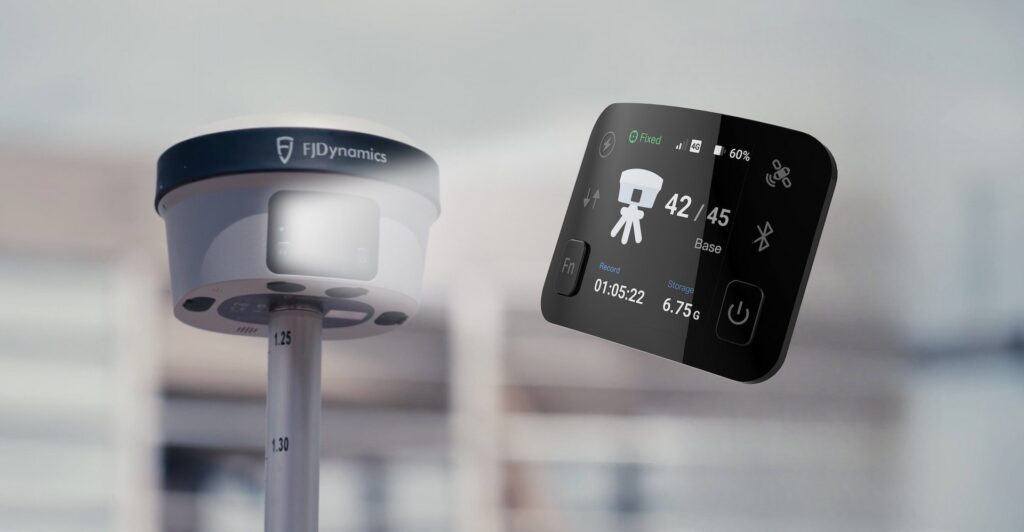

The OLED screen displays the real-time working status of V10i. The highlight screen ensures we can read under the strong sunlight. We can set V10i as a base station and static mode by physical buttons when we don’t have controllers. At the same time, the V10i has a noise-canceling microphone, which can accurately and quickly identify sound. The hi-fi speakers can broadcast the working status of the V10i.
Field to Office
Enhance Productivity with Trion Survey Cloud. 2 GB free storage with purchase of V10i.
Field and Office in Sync
Seamlessly connect field and office teams. Transmit field data and project updates in real-time, expediting work on both ends. No more waiting, just productivity.
Easy Project Management
Share system parameters and set up data, including coordinate systems, geoid models, and datum grid files.
Built Tough, Engineered to Perform
The alloy body of the V10i is lightweight and resistant to magnetic interference. The upgraded build enables consistently strong satellite availability even with obstructed sky or less than ideal weather conditions. You can trust the V10i to keep on working even if it’s rained on or dropped.
Stay Connected Wherever Your Job Takes You
Never worry about losing data transmission when you’re in the field. Check connection status on the large, 350 nits OLED screen with a quick glance, even in direct sunlight.
Application Scenarios
Accessories

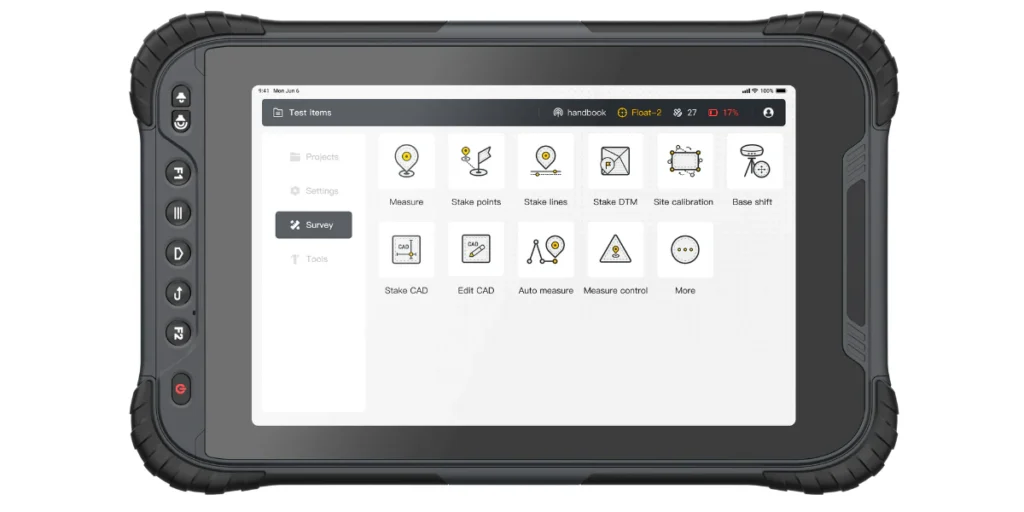

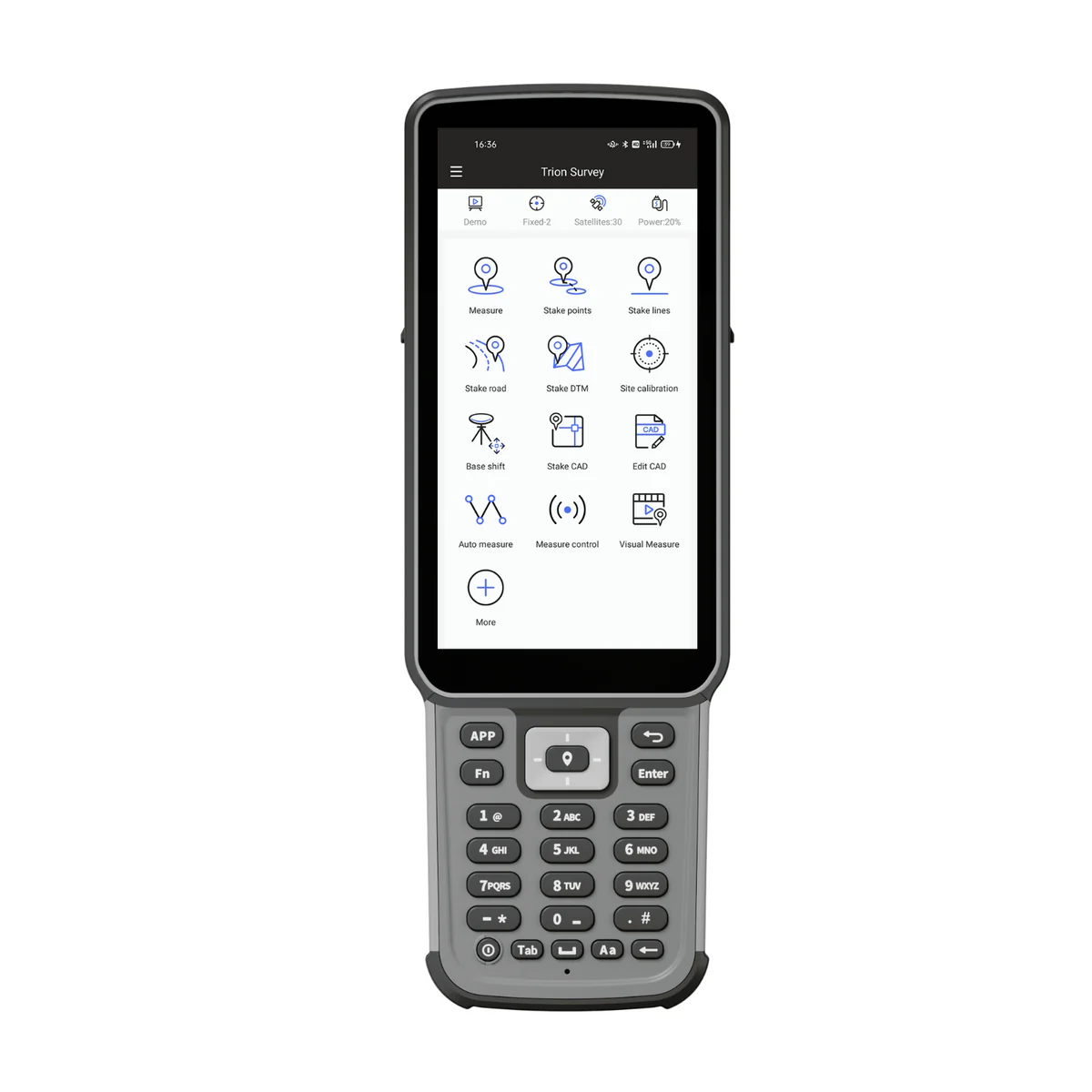

FJD Trion Field Tablet UA80
– 8”Screen, HD 750nitst(type)
– Front 8MP, Rear 16MP
– BT5.0 @BLE
– IP67, 1.2m drop-proof
– Lithium-ion (3.8V/8200mAH) removable, 10h
– Support Google GMS certification (optional)

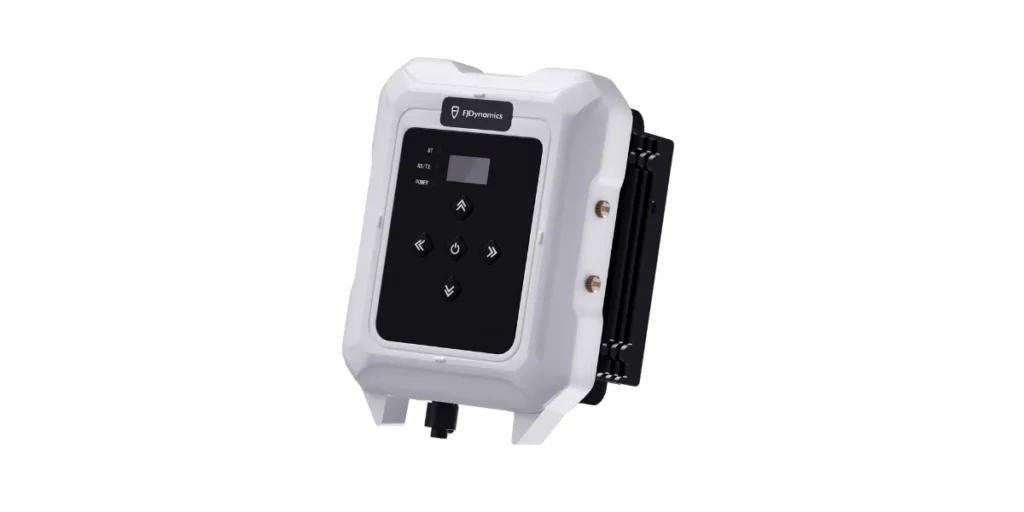

High Power External Radio
– Support for mutiple protocols: TRIMTALK, TRIMMARK III, TRANSEOT, and SATEL etc.
– Range: > 20km
– Multiple Channels, able to reprogram
– 9～16VDC，35W (85W)
– 2 kg, IP67
Specs
GNSS Performance
Channels |
1408 channels |
GPS |
L1A, L1C, L2C, L2P, L5 |
GLONASS |
L1, L2 |
Galileo |
E1, E5a, E5b, E6* |
BeiDou |
B1I, B2I, B3I, B1C, B2a, B2b* |
QZSS |
L1, L2C, L5, L6* |
IRNSS |
L5 |
SBAS |
L1* |
Positioning Performance
Real time kinematic (RTK) |
H: 8 mm + 1 ppm RMSV: 15 mm + 1 ppm RMS Initialization time: < 5 s Initialization reliability: >99.9% |
Post-processing static |
H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
Code differential |
H: 0.4 m RMS
V: 0.8 m RMS |
Autonomous |
H: 1.5 m RMS V: 2.5 m RMS |
Visual survey accuracy |
Typically 3 cm, range 2-15 m |
Positioning rate |
1 Hz, 5 Hz and 10 Hz |
Time to first fix |
Cold start: < 20s,
Hot start: < 5s Signal re-acquisition: < 1 s |
Tilt angle |
0-60° |
RTK accuracy with tilt-compensation |
30°/2.5 cm |
Hardware
Real time kinematic (RTK) |
H: 8 mm + 1 ppm RMSV: 15 mm + 1 ppm RMS Initialization time: < 5 s Initialization reliability: >99.9% |
Post-processing static |
H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
Code differential |
H: 0.4 m RMS
V: 0.8 m RMS |
Autonomous |
H: 1.5 m RMS V: 2.5 m RMS |
Visual survey accuracy |
Typically 3 cm, range 2-15 m |
Positioning rate |
1 Hz, 5 Hz and 10 Hz |
Time to first fix |
Cold start: < 20s,
Hot start: < 5s Signal re-acquisition: < 1 s |
Tilt angle |
0-60° |
RTK accuracy with tilt-compensation |
30°/2.5 cm |
Camera sensor resolution |
Foward:2 MP, downward:5 MP |
Camera FOV |
70° |
Communications and Data Storage
SIM card type |
Nano-SIM card |
Network modem |
Integrated 4G modem: TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM |
Wi-Fi |
2.4&5 GHz, 802.11a/b/g/n/actouch pairing |
Wireless connection |
NFC for device |
Bluetooth® |
BT4.2&BLE |
Ports |
7-pin LEMO port UHF antenna port USB Type-C port |
Built-in UHF radio |
Rx/tX:(410-470)mhZ / (902-928)mhZ
Transmit Power: 1W Protocol: TRIMTALK, TRIMMARK III, TT450S, TRANSEOT，Satel 3AS 4FSK Link rate: 9,600 bps to 19,200 bps Range: 5-8 km typically |
Data formats |
Input&Output：NMEA-1083、RTCM3.X
Input: RTCM2.X, CMR |
Data storage |
32 GB internal memory |
FAQ
Yes, V10i visual positioning system supports 4G network. It also supports Nano SIM card.
The front camera in V10i allows for image measurement, while the front and down-facing camera enables AR sampling.
The recommended maximum tilt angle is 60 degrees. The actual maximum tilt angle may vary depending on environmental conditions such as building obstructions, other electromagnetic interference, and ideal conditions (no interference) where it can measure up to 8km in communication distance.
Yes, the V10i RTK GNSS Receiver can be paired with an FJD external radio station for use. The working range of the external radio station still depends on environmental conditions; in ideal conditions (no interference), it can work up to 30km. In general conditions, it may range from 15-20km, and even less under severe interference conditions.
Q5: What is the built-in radio power of the V10i and the maximum power of an external radio station?
The built-in radio power of the V10i RTK GNSS Receiver is 1W, and the maximum power of an external radio station is 35W.
