FJD Trion Model Processing Software, Make Point Cloud Easy to Use
Supports various data sources.FJD Trion Model supports data collected from handheld scanners, static scanners, airborne lidars, and autonomous vehicles, and supports popular point cloud data formats, such as LAS, PLY, PTS, and E57.

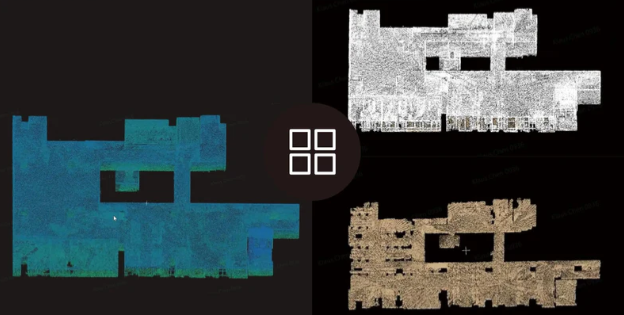

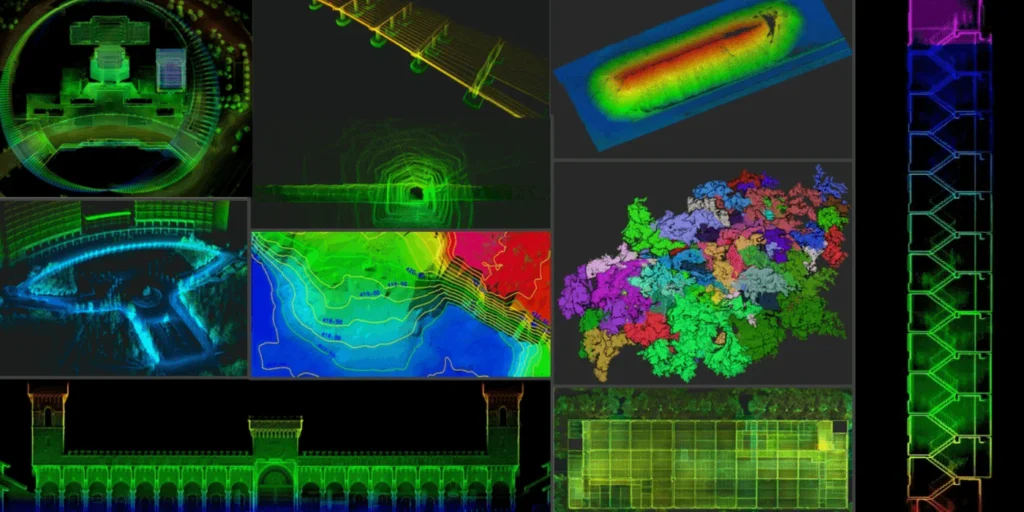

All-in-One Solution. In addition to basic point cloud processing, point cloud colorization and georeferencing capabilities, FJD Trion Model also intergrates various industry-specific applications, such as urban plan, forestry, mining and robot mapping.
Point Cloud Rendering. With full attribute point cloud rendering such as intensity, elevation and GPS time, point cloud is simple and easy to understand.
Essential Processing Functions

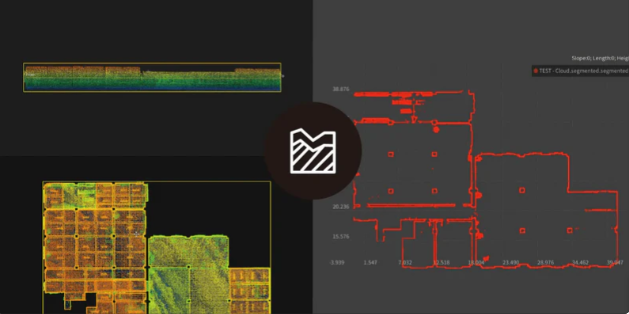

Profile Analysis to Evaluate the Quality of Point Cloud Data
Comparison Similarities
|
Function |
Basic Version | Pro Version |
|---|---|---|
| Point Cloud Mapping |
Yes |
Yes |
| Rectification | Yes | Yes |

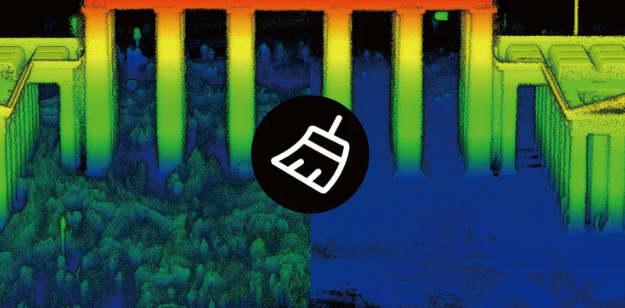

| SOR Filter | Yes | Yes |
|
MLS |
Yes | Yes |
| Point Cloud Registration | Yes | Yes |
| Merge | Yes | Yes |
| Coordinate Translation | Yes | Yes |

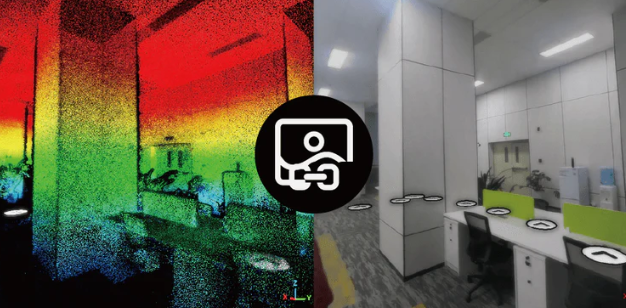

| Point Cloud Colorization | Yes | Yes |
| RTK-based Registration | Yes | Yes |
| Accuracy Verification | Yes | Yes |
| Profile Analysis | Yes | Yes |
| Subsample | Yes | Yes |
| Cluster | Yes | Yes |
| Clip By Path | Yes | Yes |
| Classification（Indoor, Outdoor, Floor, Manual） | Yes | Yes |
| Triangular Mesh（TIN, Surface Triangular Mesh, Fill Holes） | Yes | Yes |
| Clipping Box | Yes | Yes |
| Point Display（Elevation, Intensity, Time, Classification） | Yes | Yes |
Comparison Differences
| Function | Basic Version | Pro Version |
|---|---|---|
| Slice Plane | No |
Yes |
| Drawing Management | No | Yes |

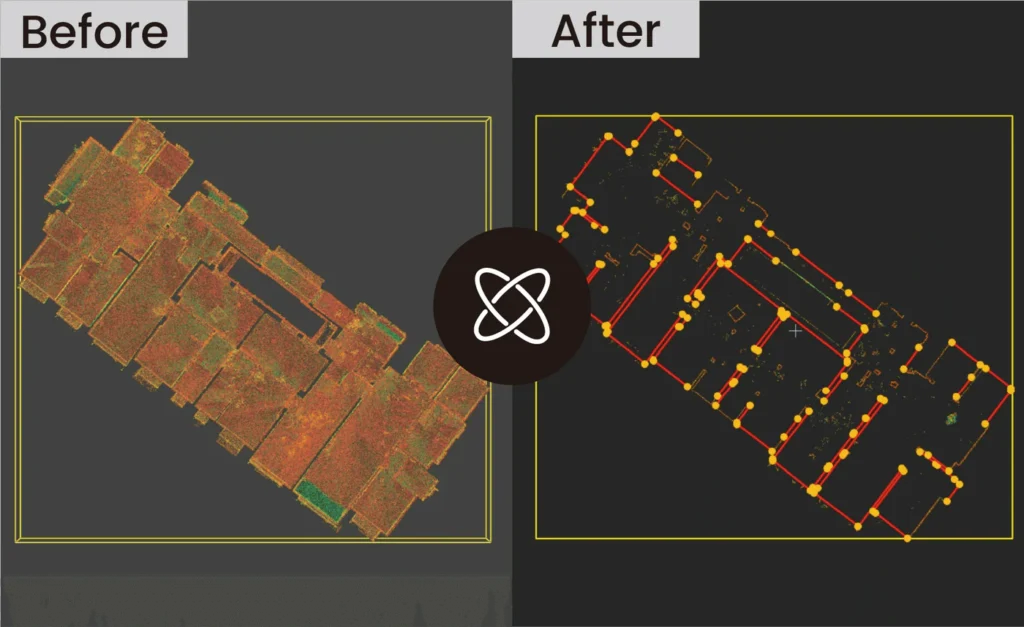

| Extract Contours | No | Yes |

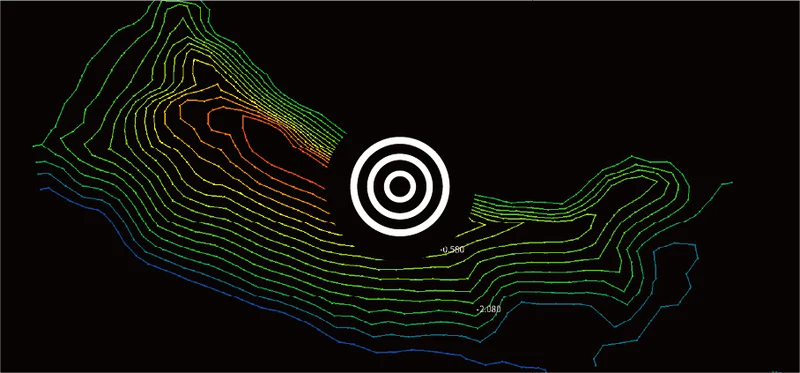

| Graphic Drawing（Polyline, Arc, Three-point Rectangle） | No | Yes |
| Extract Ground Point | No | Yes |

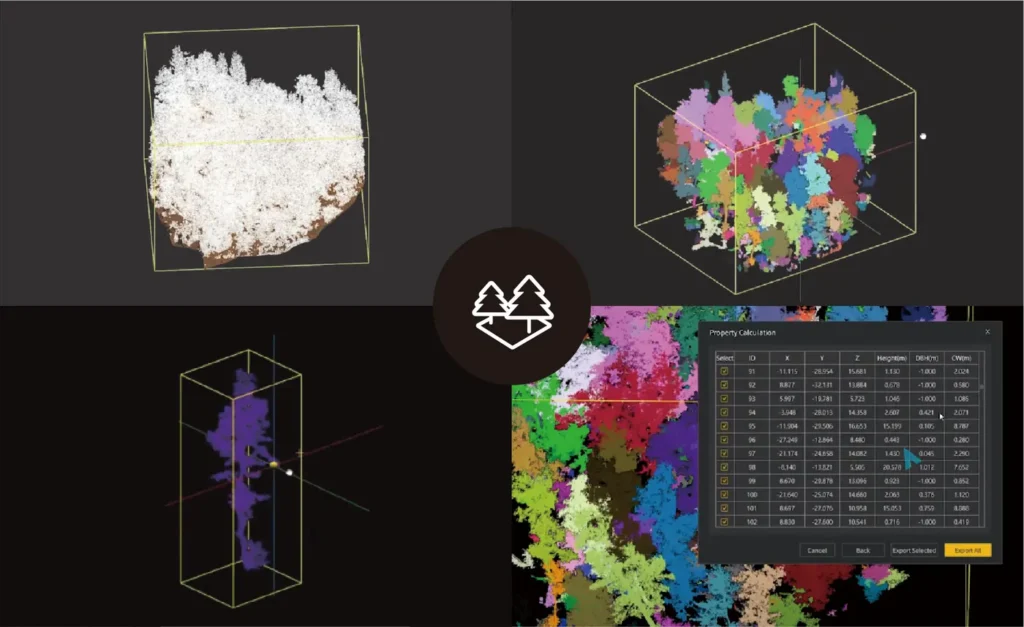

| Segment By Tree | No | Yes |

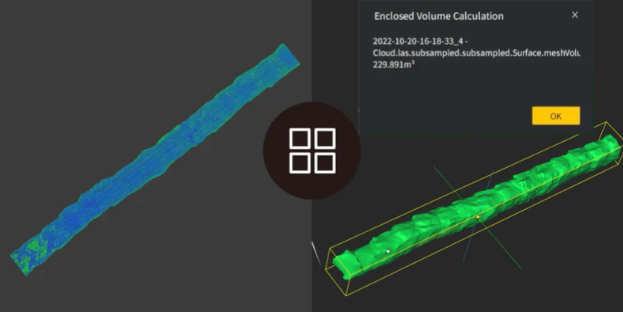

| Property Calculation | No | Yes |
FJD TRION MODEL POINT CLOUD PROCESSING SOFTWARE
FAQ
The user manual is embedded in FJD Trion Model, and you can search this manual for specific operations.
Click Help, and select Manual in the drop-down list.
Windows 7 or above (Windows 11 recommended)
Recommended configuration:
Processor: Intel® CoreTM i7-10700 CPU @ 2.90 GHz (or an AMD CPU with equal performance)
Memory: 32 GB
Graphics card: NVIDIA GeForce GTX 1650 Ti 4G
Hard disk drive: 64 GB
Screen resolution: 1680 × 1050 or above
Dot matrix, inkjet, and laser printers
Minimum configuration:
Processor: Intel® Core TM i5-2300 CPU @ 3.10 GHz (or an AMD CPU with equal performance) or above
Memory: 8 GB
Graphics card: Graphics 630
Hard disk drive: 32 GB
Screen resolution: 1680 × 1050 or above
Dot matrix, inkjet, and laser printers
